JLK 500/6+12+18+24+30 rigid framed stranding machine
The JLK 500/6+12+18+24+30 Rigid Framed Stranding Machine is engineered for the high-efficiency stranding of copper, aluminum, and ACSR conductors with large cross-sections and extended lengths. With its advanced automation, stable structure, and user-friendly interface, this machine delivers precision stranding for circular, fan-shaped, tile-shaped, and compacted conductors. It is an ideal choice for power cable and wire manufacturers aiming to enhance productivity and product quality.
Product Features
Wide Stranding Capability
Supports a single wire diameter of φ1.5–5mm and can strand up to a maximum finished conductor diameter of φ55mm, meeting various production requirements.
Advanced Programmable Control System
Equipped with a PLC and touch screen interface to centralize operational control, allowing easy setup, modification, and monitoring of production parameters.
High-Speed and Stable Operation
With a hinge speed of up to 187r/min, the rigid frame structure ensures smooth high-speed operation and optimal stranding precision.
Integrated Bobbin Design with Pneumatic Clamping
The integral upper and lower bobbins with pneumatic clamping simplify handling, minimize auxiliary time, and improve operational efficiency.
Enhanced Operator Safety and Maintenance
Each stranding carriage is fitted with a safety electric fence, and every bobbin features mechanical break protection and switch detection for reliable, safe use.

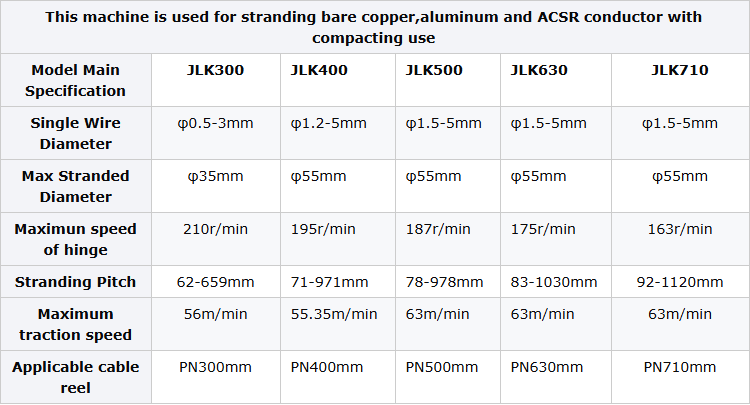

Technical Specifications
Product Advantages
Supports Irregular Conductor Shapes
Capable of stranding circular, fan-shaped, and tile-shaped conductors, offering flexibility in production and cable design.
Reliable Electrical Monitoring
Electrical switch quantity detection ensures timely fault identification, supporting safe, uninterrupted operation.
Ideal for Compacted Conductor Production
Designed specifically for compacting use, this machine is highly effective for manufacturing high-density conductors.
Time-Saving Setup and Operation
Pneumatic clamping and centralized control reduce manual workload and auxiliary time, accelerating the entire production cycle.
Consistent Tension Control
Maintains uniform tension throughout the process, improving final conductor quality and reducing defect rates.

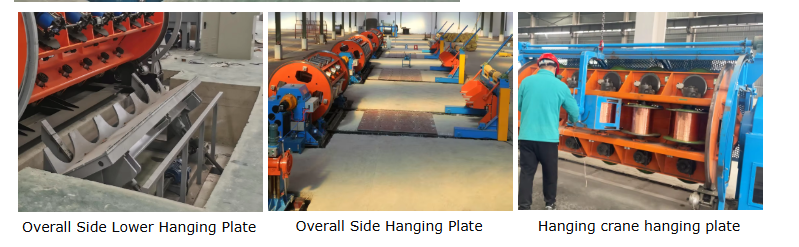

Hanging Device:
What Shape Cable Can Be Made?
