JLK630/6+12+18+24+30 rigid framed stranding machine
The JLK630/6+12+18+24+30 rigid framed stranding machine is engineered for heavy-duty cable manufacturing, supporting up to 91 wires with cross-sections ranging from 10–400mm². Designed for high-speed stranding of copper, aluminum, and ACSR conductors, it can produce round, sector, and tile-shaped cables. With a maximum stranding diameter of φ55mm and speed of 175r/min, this machine ensures reliable, efficient, and high-volume production for demanding cable applications.
Product Features
High Capacity Stranding for 91 Wires
This machine supports stranding of up to 91 wires, enabling the production of large cross-section conductors and boosting high-volume manufacturing efficiency.
Advanced Pneumatic Tension Control System
Equipped with an automatic pneumatic tension adjustment mechanism, it ensures stable tension from full bobbin to empty, enhancing product quality and consistency.
Integrated Wire Preforming and Compacting System
Each stranding carriage features a wire preforming device and sector-shaped compacting mold that preserve wire integrity and support various conductor shapes.
Intelligent Bobbin Monitoring and Break Protection
With mechanical contact detection, electrical switch sensing, and break protection per bobbin, the system ensures real-time alerts and operational safety during production.
Ergonomic Design with Electric Fence and Side Loading
The machine includes a fully enclosed safety fence with an electrically operated access door and side-loading devices for quick and secure bobbin changes.

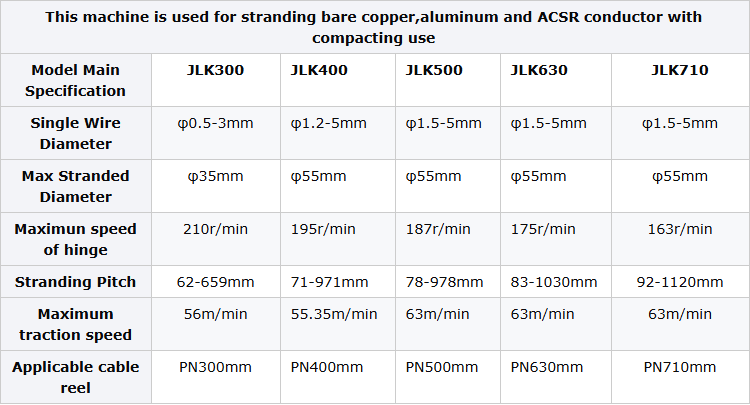

Technical Specifications
Product Advantages
Supports Large-Scale Cable Production: Designed for industrial output of large cross-section and multi-wire conductors.
Shape Flexibility: Capable of producing round, sector, and tile-shaped cables to meet various project specifications.
Improved Operator Safety and Efficiency: Electric safety doors and side loading reduce manual handling and improve turnaround time.
Precise and Consistent Stranding Quality: Stable tension control and wire preforming ensure compact and uniform conductor structure.
Reliable Lubrication System: Independent motor-driven gear pump ensures consistent gearbox lubrication and prolongs machine life.

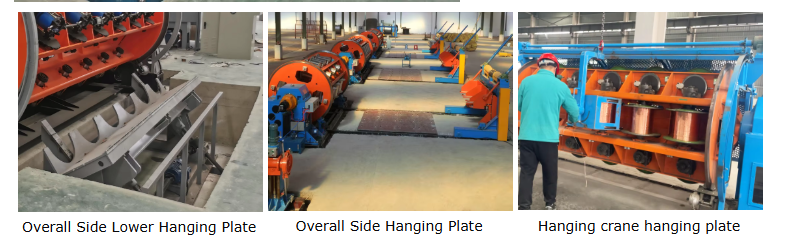

Hanging Device:

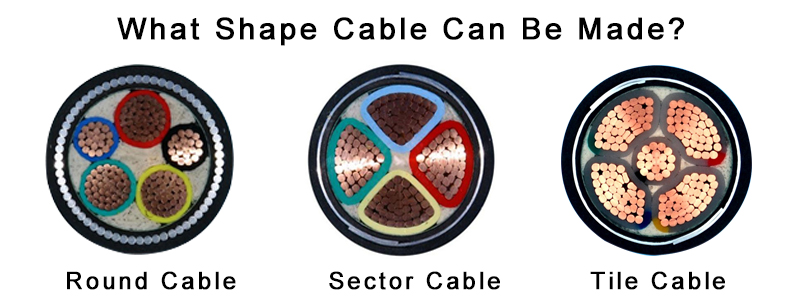

What Shape Cable Can Be Made?
