JLY500/6+12+18+24 Planetary Stranding machine
The JLY500/6+12+18+24 Planetary Stranding Machine is designed for precision stranding of control cables, power cables, and cross-linked polyethylene (XLPE) cables with up to 61-wire conductors (1.5mm²–6mm²). Featuring a ground axis linkage system for stable pitch control and a reinforced cradle structure for high-speed operation, this machine delivers superior cable quality with centrifugal break protection and adjustable tension control. Its user-friendly design makes it ideal for small-to-medium cable manufacturers seeking efficiency and reliability.
Product Features
Multi-Layer Planetary Stranding (6+12+18+24 Wires)
Capable of stranding up to 61 conductors in a single pass, this machine efficiently handles control, power, and XLPE cables with precise wire alignment and consistent lay length.
Ground Axis Linkage System for Pitch Stability
The synchronized ground axis drive ensures uniform twisting pitch, enhancing cable consistency and reducing structural defects in the final product.
High-Speed Cradle Structure for Rigid Performance
The reinforced cradle design improves structural rigidity, enabling stable high-speed rotation (up to 80 RPM) while minimizing vibration for smoother operation.
Mechanical Friction Tension Control
Adjustable pay-off tension via a mechanical friction system allows customization for different wire types, ensuring optimal strand tightness and reducing wire slippage.
Safety & Convenience Features
Centrifugal break protection automatically stops the machine if wire breakage occurs. Vertical protective covers on each strand enhance operator safety without hindering accessibility.

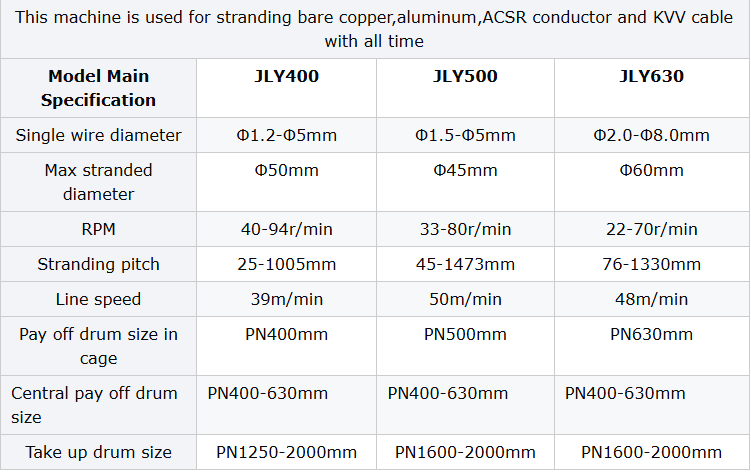

Technical Specifications
Product Advantages
High Production Capacity – Handles 61-wire conductors (1.5–6mm²) for diverse cable types.
Precision Stranding – Ground axis linkage ensures consistent pitch and lay length.
Durable & Stable – Cradle structure supports high-speed operation with minimal vibration.
Operator-Friendly – Easy tension adjustment and low-maintenance design reduce downtime.
Enhanced Safety – Wire break protection and full protective covers comply with industrial standards.
Order Information
- Lead Time: 30-180 days
- Payment Methods: T/T, L/C
- Minimum Order Quantity: 1 unit
- Customization: Available
- OEM & ODM: Supported
- After-sales Service: 24/7 online support, on-site visits possible
- Warranty: 1 year
- Workshop Facilities: Specialized production, welding, and assembly workshops
- Quality Control: Experienced QC engineers (15+ years)
- Logistics: Sea freight, plastic film packaging, wooden boxes at extra cost
