JGG400/1+6 Tubular Stranding machine
The JGG400/1+6 Tubular Stranding Machine is specially designed for stranding bare copper wire, bare aluminum wire, and ACSR (up to 7 strands). With advanced tension control, robust mechanical structure, and high-efficiency motor drive, it ensures stable, precise, and high-speed stranding operations. Ideal for cable manufacturers seeking superior productivity and quality in wire processing.
Product Features
Advanced Magnetic Tension Control
Equipped with a magnetic hysteresis device, the pay-off tension is accurately controlled and adjustable via the touch screen interface, ensuring consistent wire tension for improved stranding precision.
Shaft-less Bobbin Handling System
The shaft-less design allows for automatic mechanical clamping and pneumatic releasing of bobbins, significantly improving operational speed and making bobbin replacement safer and easier.
Efficient AC Variable Frequency Drive
An AC variable frequency motor directly drives the stranding cage through synchronous pulleys, delivering stable power transmission and efficient speed control for optimized production performance.
Precision Bearing Support Structure
The stranding cage is supported by high-quality bearings at both ends and a large-sized center bearing, reducing vibration and ensuring smooth, long-term operation with minimal maintenance.
Durable Oil Splash Lubrication System
The gear transmission system is housed in an oil splash lubrication case, which minimizes wear, improves reliability, and extends the overall service life of the machine.

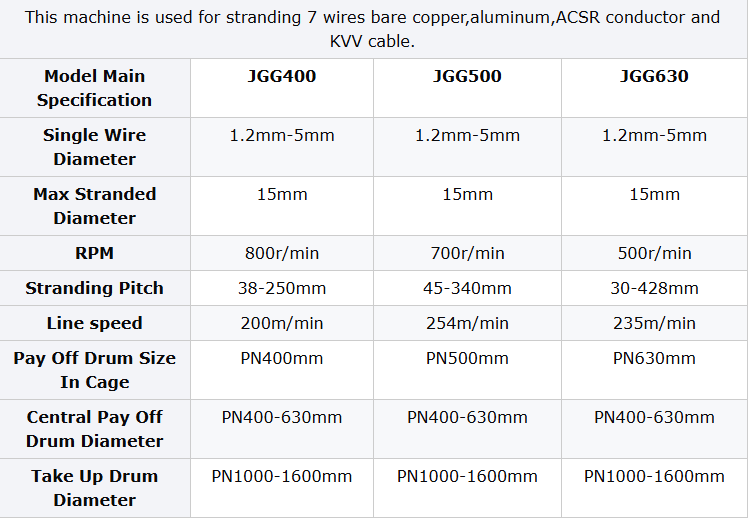

Technical Specifications
Product Advantages
High Production Efficiency
The direct drive system and simplified threading process reduce downtime and improve overall throughput.
Operator-Friendly Design
Manual locking plug screw structure and intuitive controls allow for easy operation and setup, even for less experienced technicians.
Stable and Reliable Performance
Mechanical friction control for pay-off tension ensures stable wire delivery, reducing errors and improving final product consistency.
Flexible Application
Capable of handling a variety of wire materials, including copper, aluminum, and ACSR, making it a versatile addition to any wire and cable production line.
Strong Frame and Dual Support Hinge
Robust frame design with front and back dual support ensures mechanical stability and long-lasting performance under continuous operation.
Order Information
- Lead Time: 30-180 days
- Payment Methods: T/T, L/C
- Minimum Order Quantity: 1 unit
- Customization: Available
- OEM & ODM: Supported
- After-sales Service: 24/7 online support, on-site visits possible
- Warranty: 1 year
- Workshop Facilities: Specialized production, welding, and assembly workshops
- Quality Control: Experienced QC engineers (15+ years)
- Logistics: Sea freight, plastic film packaging, wooden boxes at extra cost
