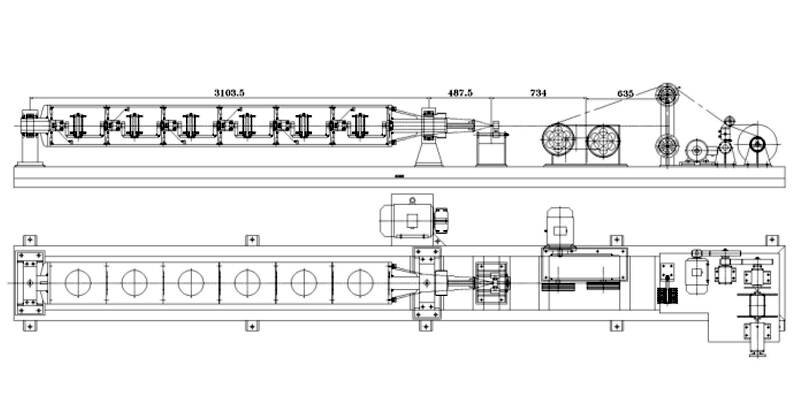

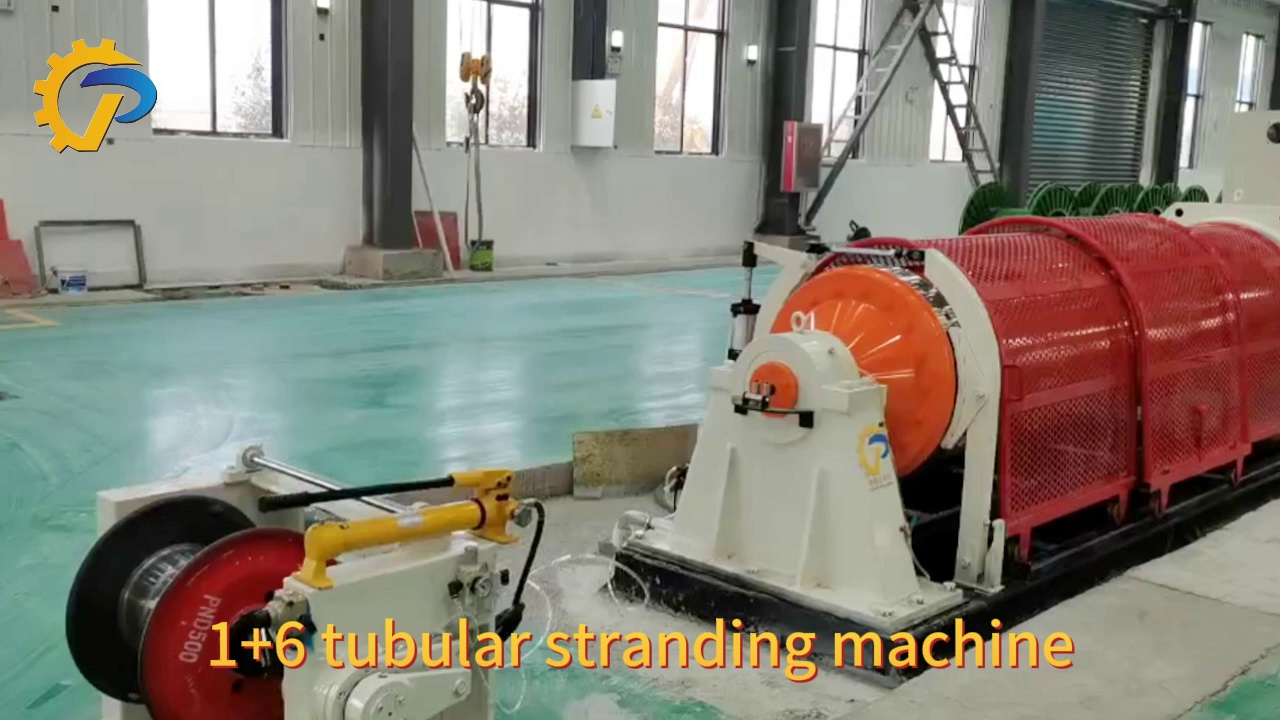

JGG630/1+6 Tubular Stranding machine
The JGG630/1+6 Tubular Stranding Machine is engineered for precision stranding of bare copper, aluminum, and ACSR conductors up to 7 strands. With advanced mechanical, electrical, and safety features, it offers high efficiency, consistent performance, and easy operation. Ideal for modern wire and cable manufacturing lines, this machine enhances productivity while ensuring exceptional stranding quality.
Product Features
Magnetic Hysteresis Tension Control
The pay-off tension is controlled by a magnetic hysteresis device, allowing operators to fine-tune tension levels via a responsive touchscreen interface, ensuring stable and precise wire stranding.
Shaft-less Bobbin Design with Pneumatic Operation
Features a shaft-less structure for automatic bobbin clamping and pneumatic bobbin release. This quick-change system simplifies loading and unloading, greatly improving operational efficiency.
Direct Motor Drive with Large-Bearing Support
An AC variable frequency motor directly drives the rotating part via synchronous pulleys. The cage is supported at both ends and the center by large-size bearings, reducing vibration and improving service life.
Pneumatic Brake System for Lay Length Stability
The stranding cage includes a pneumatic brake device that provides reliable braking force. It synchronizes deceleration between stranding and traction speeds to maintain a consistent lay length.
Integrated Safety & Wire Break Protection
Designed with axial sliding safety doors and an interlocking system, the machine ensures maximum operator safety. It also includes a centrifugal wire break detection system to minimize production interruptions.

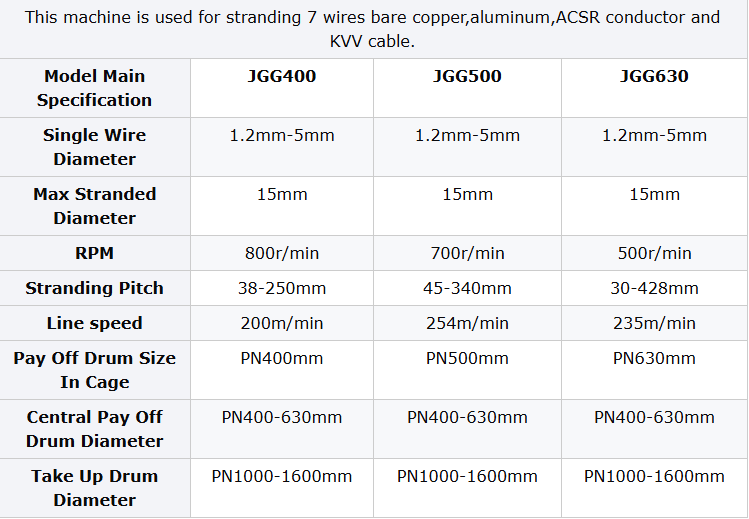

Technical Specifications
Product Advantages
High structural rigidity with dual support frame design, ensuring long-term stability and minimal maintenance.
Mechanical friction pay-off tension control, offering simple, consistent, and adjustable tensioning for various wire types.
Manual locking plug screw system, known for its reliability and ease of use during bobbin setup and removal.
Efficient gear transmission with oil splash lubrication, ensuring smooth operation and extended gearbox life.
Independent vertical protective covers on each strand provide a safer and more organized working environment.
Order Information
- Lead Time: 30-180 days
- Payment Methods: T/T, L/C
- Minimum Order Quantity: 1 unit
- Customization: Available
- OEM & ODM: Supported
- After-sales Service: 24/7 online support, on-site visits possible
- Warranty: 1 year
- Workshop Facilities: Specialized production, welding, and assembly workshops
- Quality Control: Experienced QC engineers (15+ years)
- Logistics: Sea freight, plastic film packaging, wooden boxes at extra cost
