JLK400/48 Steel wire armor rigid framed stranding machine
The JLK400/48 Steel Wire Armor Stranding Machine is a heavy-duty solution for manufacturing high-quality armored cables with precision. Designed for industrial applications, it handles single wire diameters from φ1.2-5mm and produces stranded cables up to φ55mm. With a maximum speed of 195r/min and advanced features like copper tape wrapping, dual-bearing support, and PLC control, this machine delivers exceptional performance for copper and aluminum conductor production. Its robust construction ensures reliability in demanding manufacturing environments.
Key Features
High-Capacity Stranding Performance
Capable of processing wires from φ1.2-5mm into finished cables up to φ55mm diameter, with adjustable stranding pitches from 71-971mm for versatile production needs.
Dual-Bearing Support Structure
The rigid frame design features front and rear dual bearings that evenly distribute weight, ensuring stable operation even at maximum speeds of 195r/min.
Integrated Copper Tape Wrapping
Specialized functionality for simultaneous stranding and copper tape shielding/wrapping operations, streamlining armored cable production in a single process.
Advanced Control System
Programmable PLC controller with intuitive touch screen interface enables precise parameter adjustments and real-time monitoring of all machine functions.
Comprehensive Safety Systems
Includes wire preforming devices, pneumatic brakes, and bobbin break protection with electrical detection for failsafe operation and operator protection.

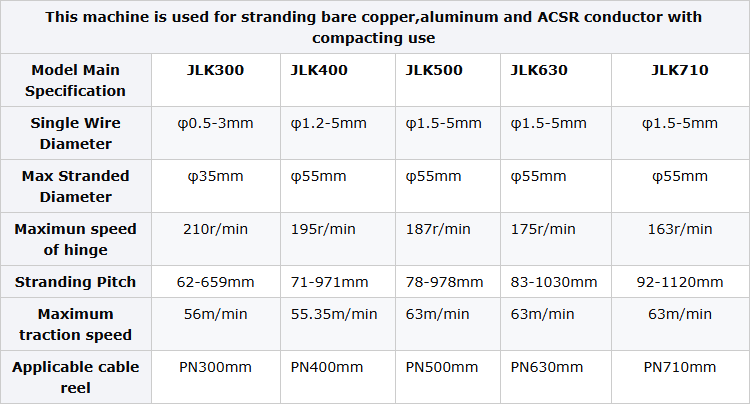

Technical Specifications
Product Advantages
Industrial-Grade Durability - Heavy-duty construction withstands continuous high-speed operation
Precision Stranding Control - Adjustable pitch and tension for consistent cable quality
Time-Saving Integration - Combines stranding and shielding in one efficient process
Operator-Friendly Design - Touch screen controls simplify complex operations
Safety-Certified Operation - Multiple protection systems meet international safety standards
High-Speed Production - Maximum travel speed of 55.35m/min boosts output

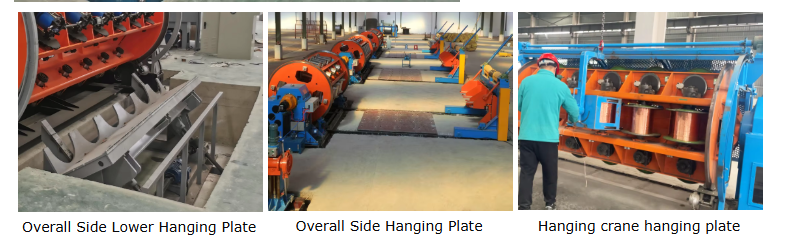

Hanging Device:
What Shape Cable Can Be Made?
