JLK630/24+24 Steel wire armor rigid framed stranding machine
The JLK630/24+24 Steel Wire Armor Rigid Framed Stranding Machine is designed for high-performance stranding of large-length, large-cross-section copper and aluminum core conductors. It produces round, sector-shaped, and tile-shaped irregular conductors while supporting copper tape shielding and wrapping. Featuring a robust dual-bearing frame structure, preforming technology, and automated tension control, this machine ensures precision, durability, and efficiency in cable manufacturing. Ideal for industrial applications requiring high-quality stranded conductors.
Product Features
Dual-Bearing Frame Structure for Enhanced Stability
The rigid stranding carriage is supported by front and rear dual bearings, ensuring smooth operation and minimizing vibration for consistent, high-quality conductor production.
Wire Preforming Technology for Secure Stranding
Each stranding carriage includes a wire preforming device, preventing loosening after conductor section disconnection and maintaining tight, uniform strands.
Adjustable Wire Tension with Pneumatic Control
Equipped with electronic detection and pneumatic proportional valves, the machine maintains constant wire tension from full to empty bobbins, ensuring uniform strand quality.
Shaft-Less Pneumatic Bobbin Clamping & Safety Locking
Features quick pneumatic clamping and releasing of bobbins, along with a mechanical safety lock for secure operation and easy bobbin changes.
Individual Motor-Driven Lubrication System
Each gearbox is lubricated by a dedicated motor-driven gear pump, enhancing durability and reducing maintenance needs for long-term reliability.

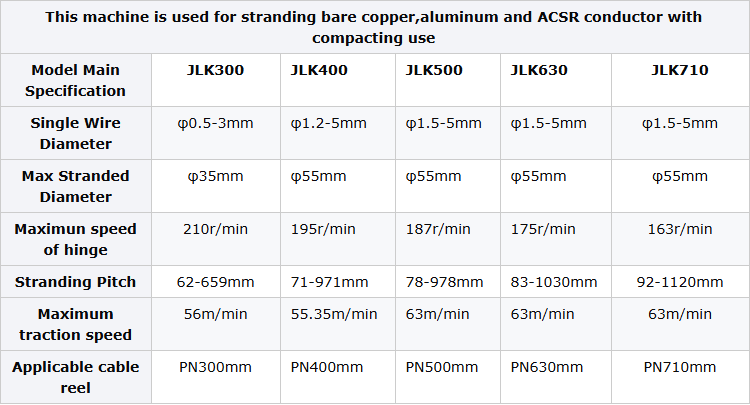

Technical Specifications
Product Advantages
High Precision Stranding – Produces round, sector, and tile-shaped conductors with tight tolerances.
Automated Tension Control – Ensures consistent strand quality with electronic and pneumatic adjustment.
Robust Construction – Dual-bearing frame and rigid design for heavy-duty industrial use.
Efficient Operation – Shaft-less bobbin handling and quick-release mechanisms reduce downtime.
Reliable Safety Features – Mechanical locking and break protection enhance operational safety.

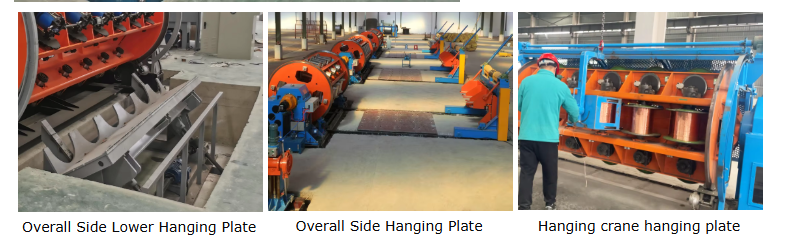

Hanging Device:

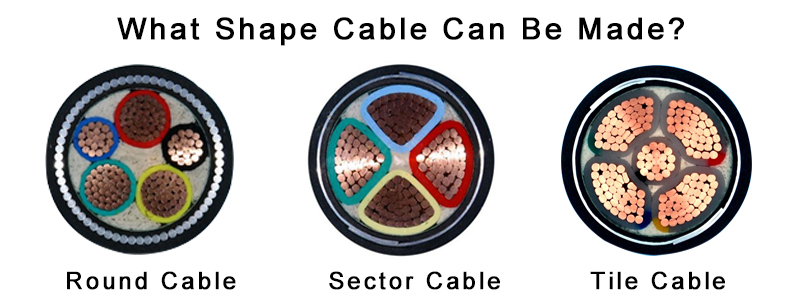

What Shape Cable Can Be Made?
