JLK500/6+12+18+24 rigid framed stranding machine
The JLK500/6+12+18+24 Rigid Framed Stranding Machine is a high-performance solution for manufacturing copper, aluminum, and ACSR conductors with large cross-sections. Designed for versatile stranding applications, it produces round, fan-shaped, and tile-shaped irregular conductors, including copper tape shielding and wrapping. Featuring automated tension control, PLC operation, and shaft-less bobbin handling, this machine ensures precision, efficiency, and safety in industrial cable production.
Product Features
Multi-Functional Stranding for Various Conductors
Capable of producing round, fan-shaped, and tile-shaped conductors, as well as handling copper tape shielding and wrapping, making it ideal for diverse cable manufacturing needs.
Advanced Pneumatic Tension Control
Equipped with an automatic tension adjustment mechanism, the machine maintains stable wire tension from full to empty bobbins, ensuring consistent strand quality.
PLC & Touch Screen Automation
A programmable controller (PLC) and touch screen interface allow for easy parameter setup, real-time monitoring, and process adjustments, improving operational efficiency.
Shaft-Less Pneumatic Bobbin Handling
Features pneumatic clamping and releasing of bobbins with a mechanical safety lock, ensuring quick bobbin changes and secure operation.
Enhanced Safety & Lubrication System
Each stranding carriage includes a safety electric fence, while an individual motor-driven gear pump ensures optimal gearbox lubrication for long-term durability.

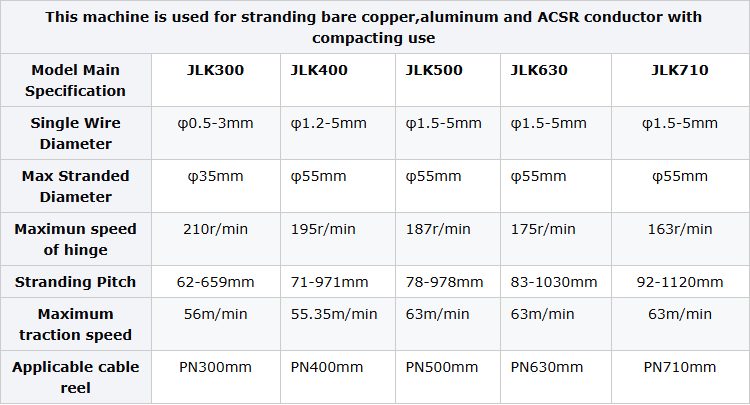

Technical Specifications
Product Advantages
High Precision & Consistency – Produces uniform conductors with tight tolerances and stable tension control.
Automated Operation – PLC and touch screen control minimize manual intervention, reducing errors and downtime.
Versatile Production – Supports copper, aluminum, and ACSR conductors for a wide range of cable applications.
Quick & Safe Bobbin Changes – Shaft-less pneumatic clamping improves efficiency while safety mechanisms protect operators.
Low Maintenance & Long Lifespan – Dedicated lubrication system and robust construction ensure reliable, long-term performance.

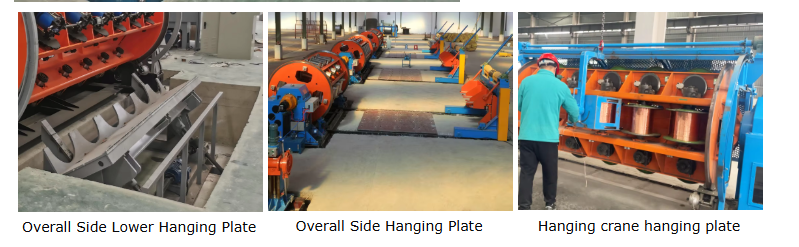

Hanging Device:

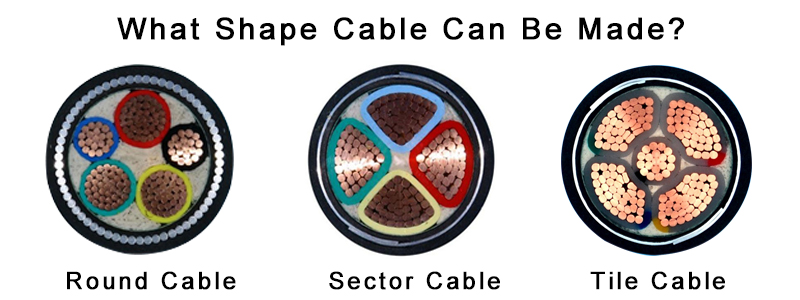

What Shape Cable Can Be Made?
