JLK400/6+12 rigid framed stranding machine
The JLK400/6+12 Rigid Framed Stranding Machine is a high-performance solution for manufacturing long-length and large cross-section conductors. Suitable for copper, aluminum, and ACSR materials, it supports a variety of conductor shapes. With its pneumatic tension control, flexible motor configurations, and automatic tension adjustment, this stranding machine ensures precise, consistent performance and greater production efficiency for modern cable manufacturing operations.
Product Features
Flexible Motor Configuration (Single or Split Motor)
Offers both single and split motor setups to accommodate various production needs and improve mechanical adaptability.
Supports a Wide Range of Conductor Types
Effectively twists copper, aluminum, and ACSR conductors, making it suitable for diverse electrical and transmission cable applications.
Integral Upper and Lower Bobbin System with Pneumatic Clamping
Simplifies bobbin handling, reduces auxiliary time, and boosts productivity with fast, efficient pneumatic clamping and releasing.
Automatic Pneumatic Tension Adjustment System
Ensures constant tension throughout the winding process using electronic detection and proportional valve control for higher product consistency.
Dedicated Gear Pump for Gearbox Lubrication
Equipped with an individual motor-driven gear pump to ensure continuous gearbox lubrication and extend equipment life.

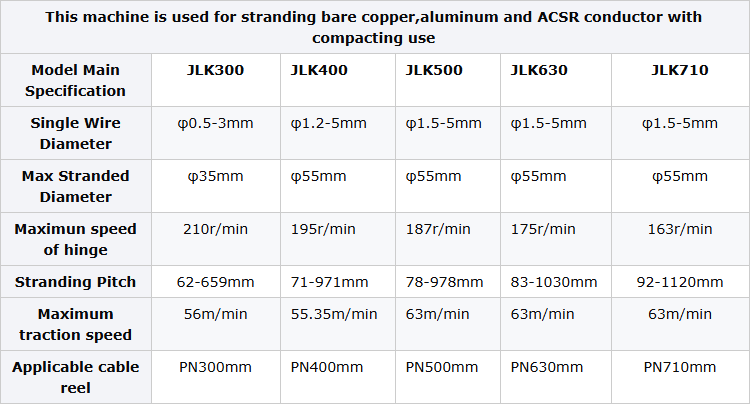

Technical Specifications
Product Advantages
Stable tension ensures uniform conductor quality from start to finish.
Versatility in processing multiple conductor shapes including circular, fan-shaped, and tile-shaped types.
Improved operational efficiency through fast setup and reduced manual handling of bobbins.
Long-term performance reliability thanks to automatic lubrication and reduced wear of moving parts.
Designed to meet the demands of large-scale stranding operations with high precision.

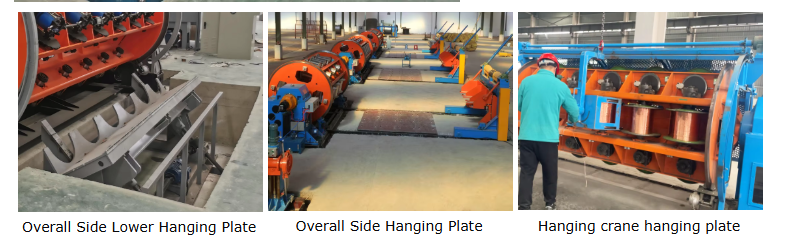

Hanging Device:

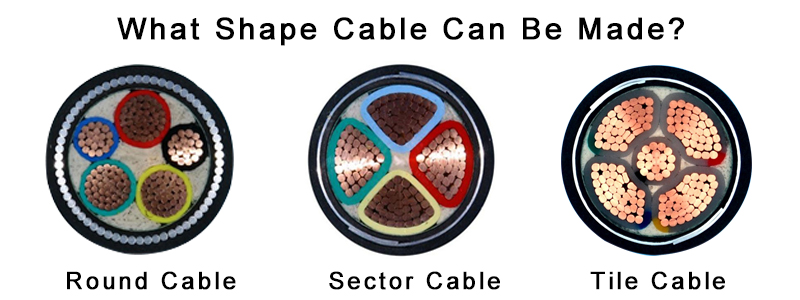

What Shape Cable Can Be Made?
